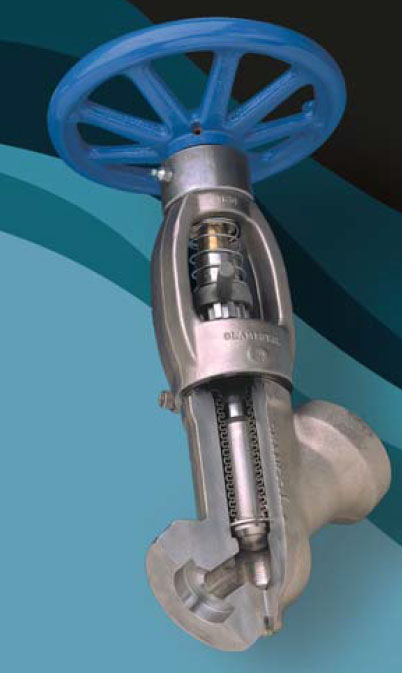

Bellows Seal Valves

Mã sản phẩm : 1708415500

Conval Bellows Seal Valves meet all of the rigorous requirements of MSS SP-117, ensuring bellows longevity

Số lượng:

    Conval Bellows Seal Valves meet all of the rigorous requirements of MSS SP-117, ensuring bellows longevity.

    TANDARD SIZES

    1/2” through 4” (4” Reduced Port)
    PRESSURE RATING
    Through ASME Class 2500
    STANDARD MATERIALS
    Carbon Steel SA105
    Chrome-Moly SA182-F22, F91
    Stainless Steel SA182-F316, F316L, F347
    Optional materials available upon request.

    STANDARD ACCESSORIES
    Actuators – Electric, Pneumatic or Hydraulic
    Locking Devices – Open, Closed or Both
    Limit Switches – Single or Dual
    Stem Shroud
    Position Indicator
    Leak-Off Port

    ......
